More than 3500 km2 of new PGS broadband reprocessed multi-client data is now available in the West Niger Delta Basin, providing a clearer image of potential targets in blocks OPL 248, 249, 250, 2011, and OML 140.

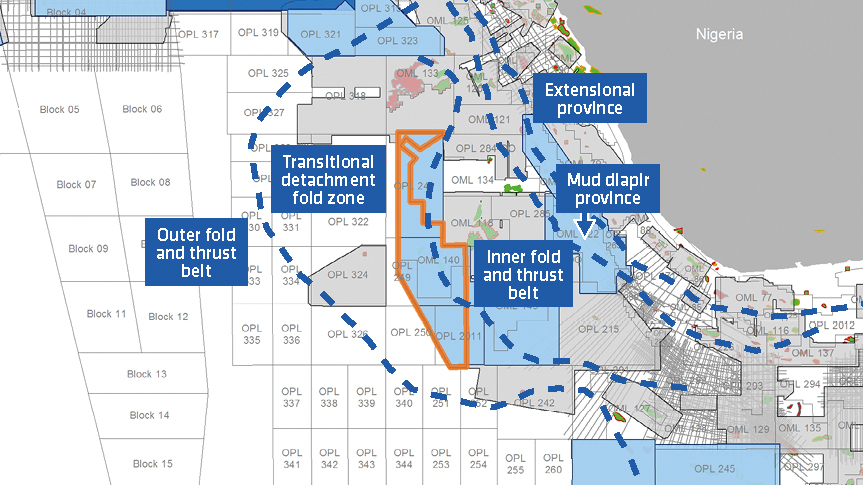

This newly reprocessed dataset targets the West Niger Delta Basin and covers two main structural provinces directly linked to the gravity-driven movement of the Akata Shale Formation.
The east of the survey, situated in the inner fold and thrust belt, is dominated by shale diapirism, rollover anticlines, and closely spaced thrust faults. The west of the survey is located in the transitional detachment fold zone and contains subtle faulting along with low wavelength folding of Eocene to Quaternary stratigraphy.
The Niger Delta Basin formed during the Late Cretaceous period and is dominated by up to 12 km of Late Cretaceous to Quaternary-aged clastics deposited in an upward-coarsening regressive deltaic sequence. The main source rocks are Akata Formation marine shales and Lower Agbada Formation paralic shales.
Proven reservoirs in the basin are dominated by unconsolidated sandstones of the Agbada Formation deposited as stacked turbidite channel and fan complexes (Tuttle et al., 1999). The largest accumulations are trapped in roll-over anticlines in the hanging walls of growth faults, but hydrocarbons may also be found in fault closures and subtle stratigraphic traps.
Enhanced imaging of targets is achieved with clearer illumination of complex structures associated with the diapiric movement of the Akata Shale Formation.
Optimized denoising algorithms and a full deghosting sequence have improved data bandwidth and the signal-to-noise ratio. A multiple attenuation sequence eliminated complex multiples, leading to an overall improvement in image integrity.
